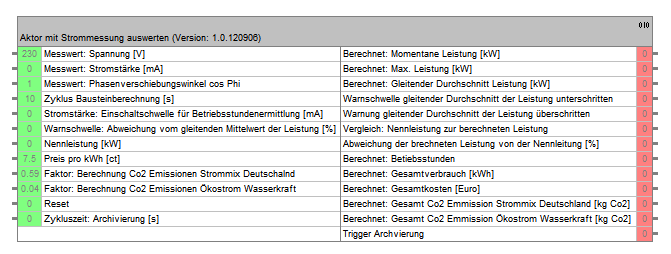

The logic module is used in connection with Gira actuators which support current measurement. Using the current values sent via the bus, the module calculates the current power, the maximum occurring power and a moving average.
In addition to the elapsed hours of the connected load, the module also calculates the total consumption, total costs and the CO2 emissions for two different energy supply sources.
Note: The module does not provide any results which are relevant for billing. The calculations are based on the received input values. If these values have not be measured, they can deviate from the assumed values and change during ongoing operation.
Therefore, suitable meters (with a KNX interface) must be used for topics relevant for billing.
Hard- und Softwareversionen: Gira HomeServer 3 from version 2.8 / Gira HomeServer 4 from version 2.10
Gira Hardware: 1x 052900 Gira HomeServer 4 KNX
Bekannte Ausnahmen: The module does not provide any results which are relevant for billing. The calculations are based on the received input values. If these values have not be measured, they can deviate from the assumed values and change during ongoing operation. Therefore, suitable meters (with a KNX interface) must be used for topics relevant for billing.
Realisierungsdauer: 0.5 hr.
