DALI lighting control

Intuitive operation of lights with DALI interface

DALI, which stands for Digital Addressable Lighting Interface, is a manufacturer-independent standard for lighting control in buildings. It is used widely in properties such as offices, shops, restaurants or hotels.

Features:

  • Global standard
  • Lighting control for different loads



  • Simple and affordable to plan
  • Flexible

Flexible lighting control

As a digital alternative to the usual 1–10 V technology, DALI devices, with their various intelligent functions, offer the same level of convenience as complex bus systems – but are much easier and less expensive to install. This is because a normal 5-wire NYM cable, for example, which is often present in the existing electrical installation, can be used both for the power supply and for control signal transmission. In addition, far fewer control components are needed than in a conventional 1–10 V system. This is because ballasts with a DALI interface are flexibly addressable. In other words, they can be controlled individually but also belong to one or more groups. Furthermore, they offer significantly enhanced functionality as they can save information for various light scenes, transmit status and error messages and reach dimming target values at the same time as all other devices, to name but a few examples.


System design of DALI lighting control
with DALI potentiometer without power supply unit


System design of DALI lighting control
with DALI potentiometer with integrated power supply unit


System design of DALI lighting control
with KNX DALI gateway Plus


Gira DALI operating devices

To ensure the convenient and intuitive dimming and control of lights with a DALI interface, Gira offers corresponding DALI potentiometers in various versions. With installation in the device box and matching covers and frames, the Gira DALI operating devices are seamlessly integrated into the Gira design system.

Gira DALI potentiometer

For controlling the brightness of lights with a DALI interface, in conjunction with an external DALI power supply or as an auxiliary unit for the Gira DALI potentiometer with integrated power supply unit.

Find out more in the online catalogue

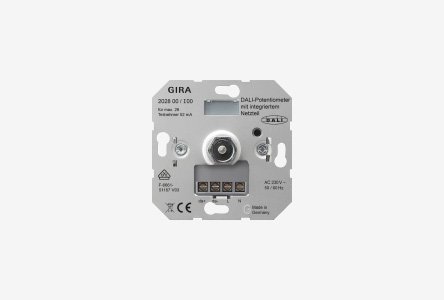

Gira DALI potentiometer with integrated power supply unit

For controlling the brightness of lights with integrated DALI interface. The required DALI power supply is already integrated into the device.

Find out more in the online catalogue

Gira DALI potentiometer Tunable White

For controlling the brightness and colour temperature of lights with integrated DALI interface, which comply with the DALI standard IEC 62386-209 (Device Type 8). In conjunction with an external DALI power supply or as an auxiliary unit for the Gira DALI potentiometer Tunable White with integrated power supply unit.

Find out more in the online catalogue

Gira DALI potentiometer Tunable White
with integrated power supply unit

For controlling the brightness and colour temperature of lights with integrated DALI interface, which comply with the DALI standard IEC 62386-209 (Device Type 8). The required DALI power supply is already integrated into the device.

Find out more in the online catalogue

Gira DALI gateway Plus for KNX

The Gira DALI gateway Plus for KNX is the interface between the KNX installation in the building and a digital DALI lighting system. It enables switching of up to 64 lights in a maximum of 32 groups and the implementation of complex scenes and dynamic light effects via the KNX system. It also allows for a great deal of flexibility during the subsequent lighting configuration process.

Find out more in the online catalogue

Gira eNet wireless DALI control unit, 1-gang Mini

The Gira eNet wireless DALI control unit enables DALI lights to be switched on or off and have their brightness adjusted.

Find out more in the online catalogue
