Gira G1

The right operating device for every Smart Home.

With the new Gira G1 and the Gira G1 XS, we offer two powerful operating devices to meet all your Smart Home needs, whether you're looking for a premium solution with a comprehensive range of functions or a compact control centre at an attractive price. Both impress with their modern design, intuitive touch operation and full integration into Gira Smart Home systems. The second-generation Gira G1 boasts optimised performance, a larger display and an extended range of functions. The Gira G1 XS impresses as an attractively priced variant with proven technology and all the functions you would expect.

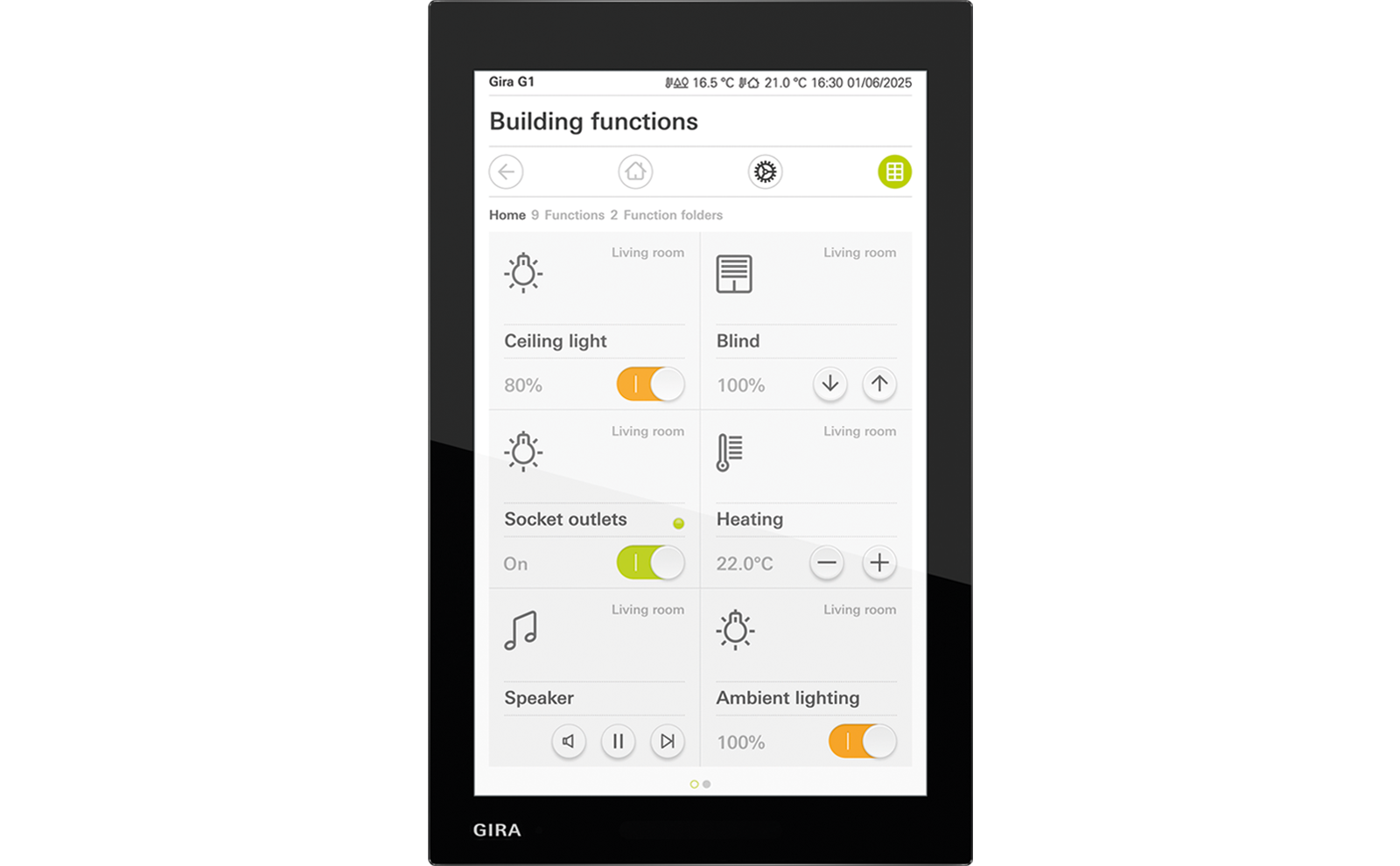

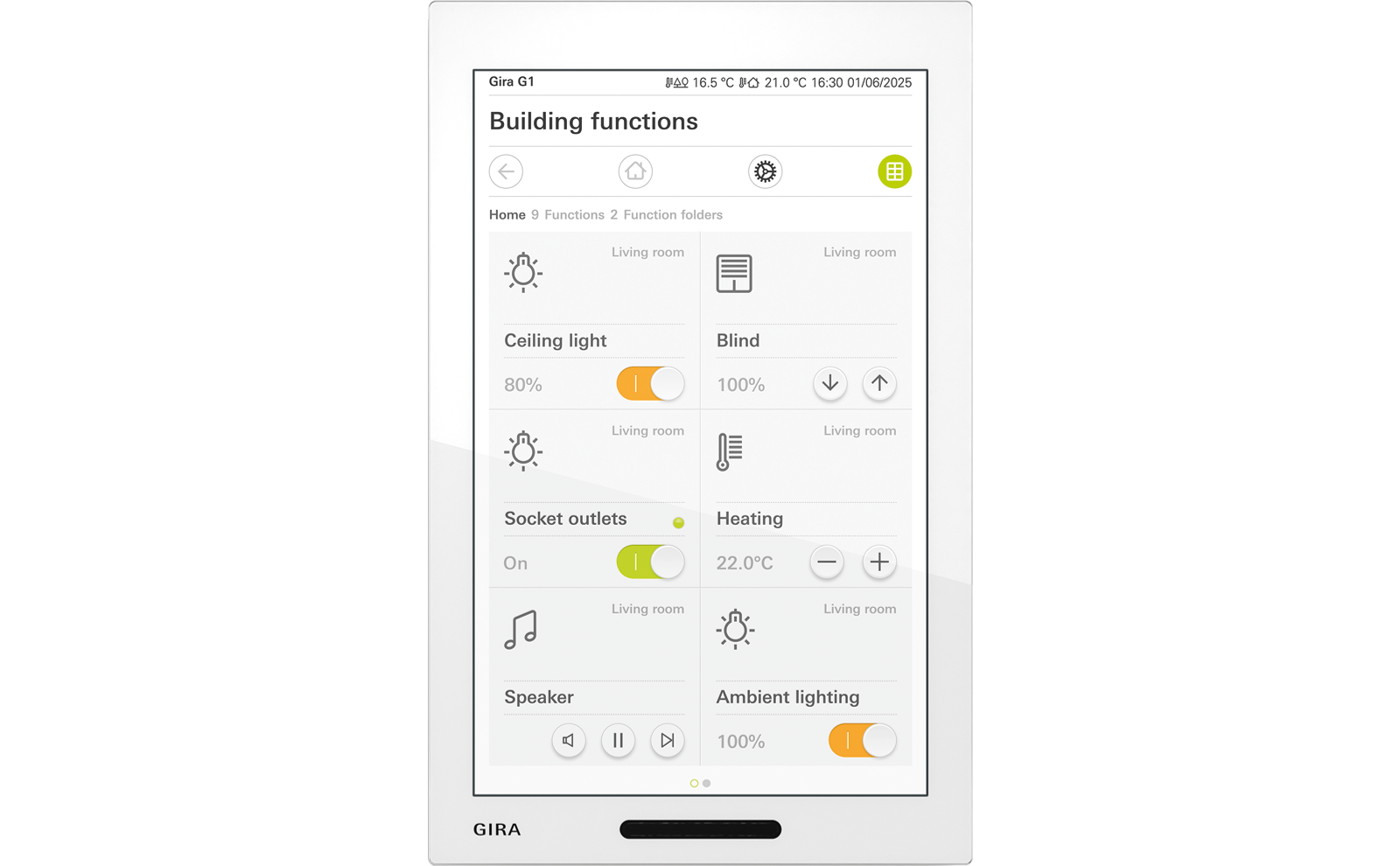

Gira G1

Bigger. Faster. Stronger. The new Gira G1.

The new Gira G1 offers an extended range of functions, improved performance, future-proof control of all Gira Smart Home systems and intuitive operation with multi-touch and swipe gestures.

  • Integrated microphones for optimum voice quality and speaker for door communication integrated into the housing
  • Integrated sensors for brightness, and optionally for temperature and humidity as well
  • Optimised software with improved performance, especially in conjunction with the Gira HomeServer.
  • Can be updated

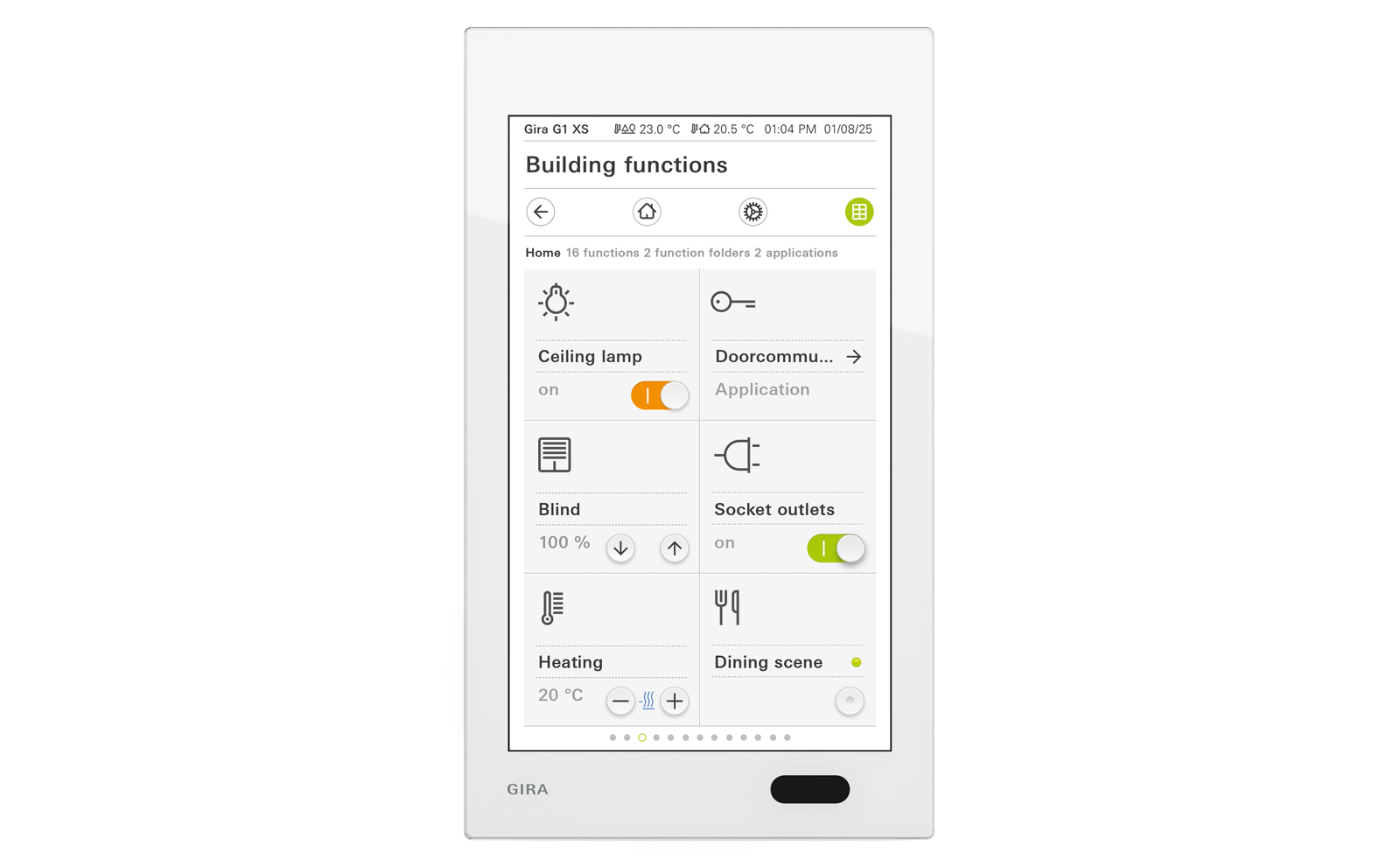

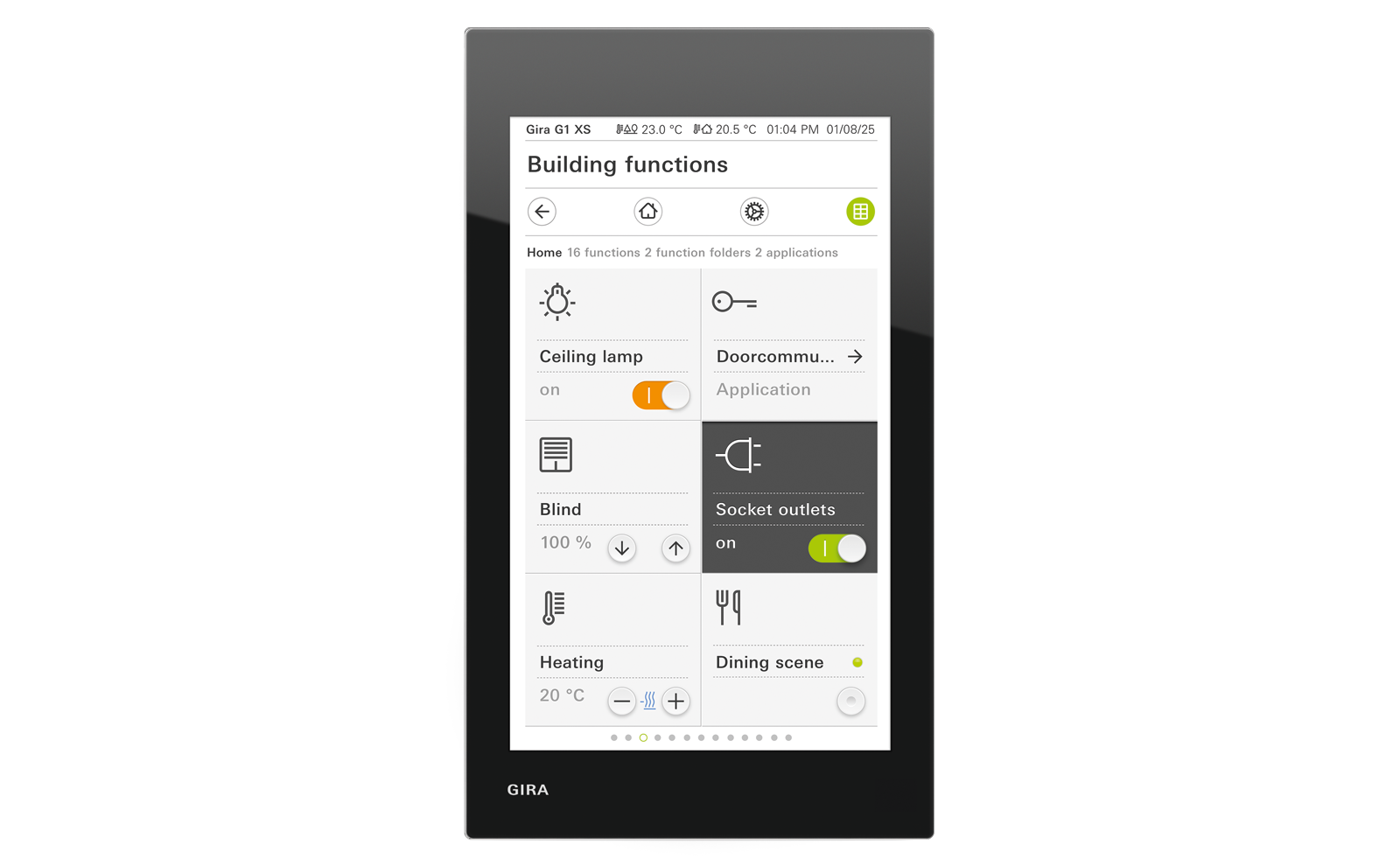

Gira G1 XS

Compact. Flexible. Attractively priced. The Gira G1 XS.

Efficient, focused on the job at hand and ideal for cost-conscious projects, the Gira G1 XS is the compact solution for reliable Smart Home control with Gira One and Gira X1.

  • 6-inch touch display with high resolution
  • Can be used for Gira One and Gira X1 and as a home station for door communication
  • Compact, slim design with metal frame
  • Brightness and proximity sensor for automatic display adjustment
  • Integrated microphones for optimum voice quality and speaker for door communication integrated into the housing
  • Excellent value for money
  • Tamper-proof thanks to KNX Secure
  • Power can be supplied via Power over Ethernet (PoE)
  • Start-up via GPA, ETS and on the device

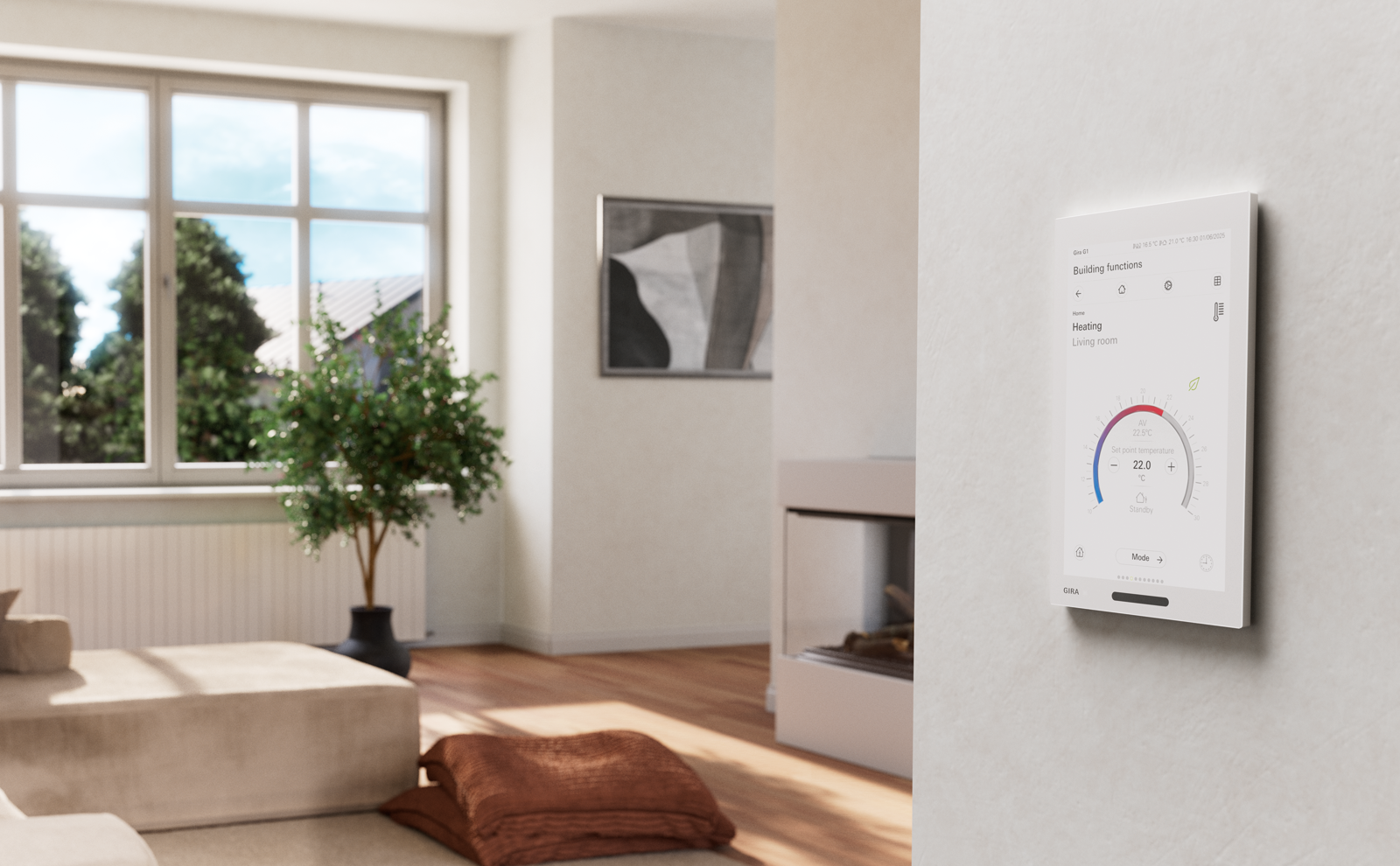

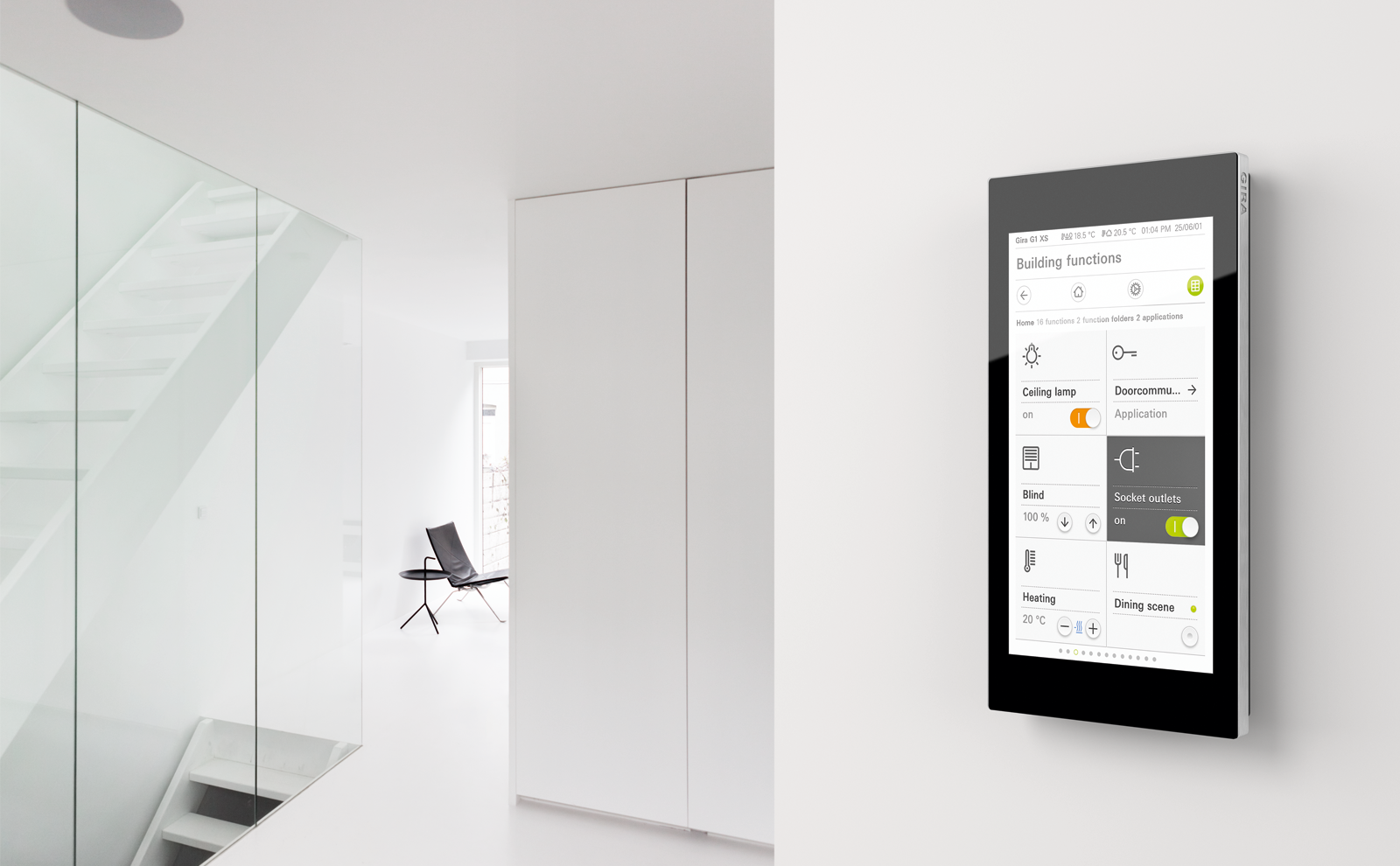

Suitable for any living environment.

Both the Gira G1 and the Gira G1 XS are manufactured from high-quality materials and characterised by a timelessly elegant design.

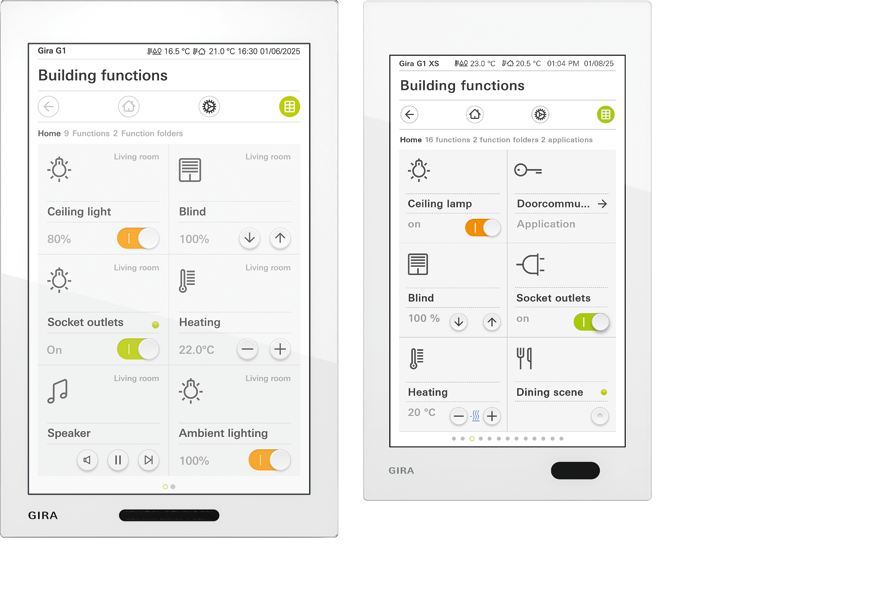

Two operating devices for different requirements.

With the new Gira G1 and Gira G1 XS, Gira offers two powerful operating devices. Both models are characterised by high quality materials and an elegant design, but differ in their range of functions, making them suitable for every Smart Home project. The Gira G1 XS complements the range as an attractive solution offering excellent value for money.

Property
Gira G1
Gira G1 XS
Display
7-inch, 800 x 1280 px (216 ppi), capacitive, shatter-proof, intuitive operation of all functions with multi-touch and swipe gestures
6-inch, 480 x 800 px (155 ppi), capacitive, shatter-proof, intuitive operation of all functions with multi-touch and swipe gestures
Smart Home systems
Gira HomeServer, Gira X1, Gira One
Gira X1, Gira One
Door communication
Gira and SIP
Gira and SIP
Start-up
Via GPA
Via GPA, ETS and on the device
WLAN
Yes (optional)
No
Security
Secure encryption to all Gira servers
KNX Secure
Humidity sensor
Yes (optional)
No
Temperature sensor
Yes (optional)
Yes (optional)
Floor call via binary input
Yes
No
Variants
PoE, 24 V
PoE
Design
Available in black or white, matt plastic frame
Available in black or white, metal frame

Client functionalities

Both the Gira G1 and the Gira G1 XS serve as powerful control centres for Gira Smart Home systems. They assume the client function for controlling light, shading, room climate, scenes, security and more, with a specific range of functions dependent on the system used. In addition, both devices can be integrated into Gira door communication or SIP-based systems.



Click on the systems to get an overview of the most important properties of the clients in accordance with the individual systems.

Gira One
Gira X1
Gira HomeServer
Gira KNX
Door communication

Gira One Client properties

  • Controls all functions integrated in the Smart Home
  • Can be flexibly expanded
  • Reliable protection against unauthorised access and tampering

Gira X1 Client properties

  • Controls all functions integrated in the Smart Home
  • KNX-compatible devices can be connected
  • Extensive customisation options that users can set themselves (icons, colours, names, scenes etc.).

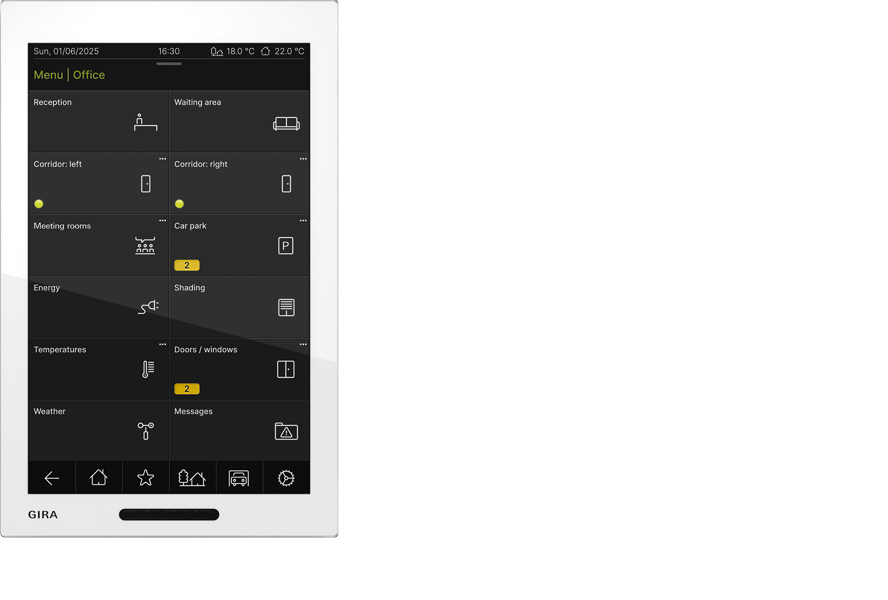

Gira HomeServer Client properties

  • Controls all functions integrated in the Smart Home
  • KNX-compatible devices can be connected
  • Improved stability and speed with the latest HTML5 technology
  • Day/night switchover for better display recognition
  • System settings protected by PIN
  • New plugins for the camera, chart visualisations and value displays from sensors and devices

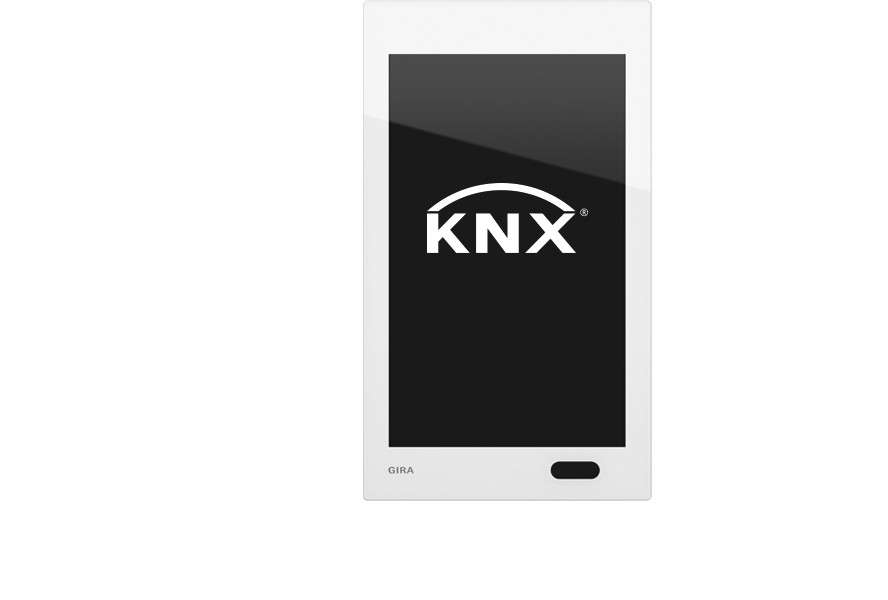

Can be used as a KNX operating device

  • Flexible control of KNX-based Smart Homes without an additional server

Properties as a client for door communication

  • Can be used as a home station in the Gira door communication system
  • Supports SIP door communication (e.g. 2N, Comelit, Schüco, TCS)
  • Local image storage for greater security
  • Custom ringtones for personalised use

Mounting

The Gira G1 operating devices can be connected in a variety of ways and can therefore be easily integrated into different structural settings and technical infrastructures. A robust mounting frame ensures secure mounting, while the small amount of cabling required enables fast and clean installation.

Installation tip:

Gira G1 and Gira G1 XS fit perfectly in 2-gang flush-mounted boxes, which have enough space to accommodate the cabling.

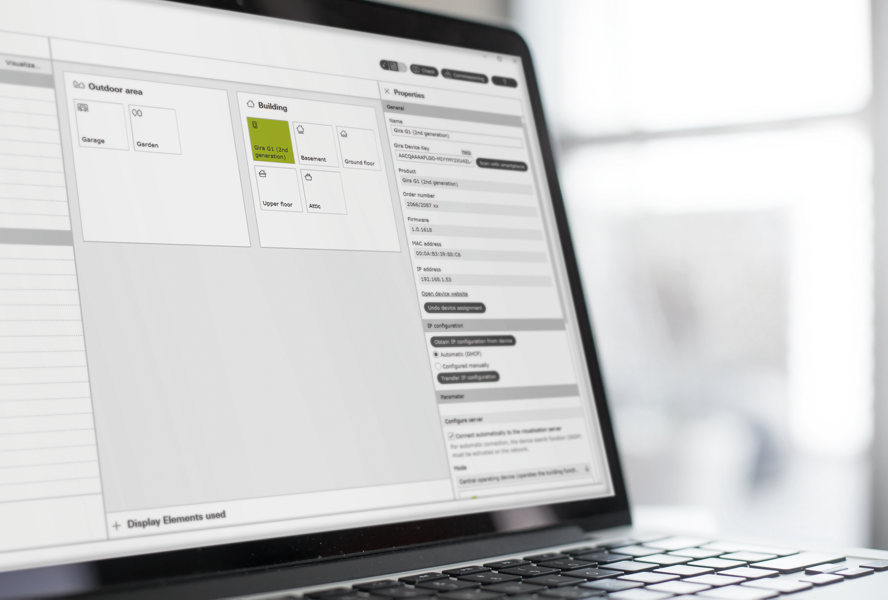

Easy start-up

Quick to set up, wherever you use it.

Gira G1 and Gira G1 XS offer convenient, flexible start-up. The Gira Project Assistant (GPA) provides a step-by-step configuration guide. The room operating device and building operating device operating modes save time during configuration as the GPA automatically creates the appropriate profiles and user rights. With the G1 XS, ETS start-up is also possible – perfect for individual adjustments in KNX systems. Both devices can be installed in new buildings or retrofitted during renovations

  • Start-up via GPA (Gira G1 & XS)
  • ETS support for G1 XS
  • Flexible supply: PoE or 24 V (G1 only)



More information on the Gira Project Assistant


Control all functions with the tap of a finger.

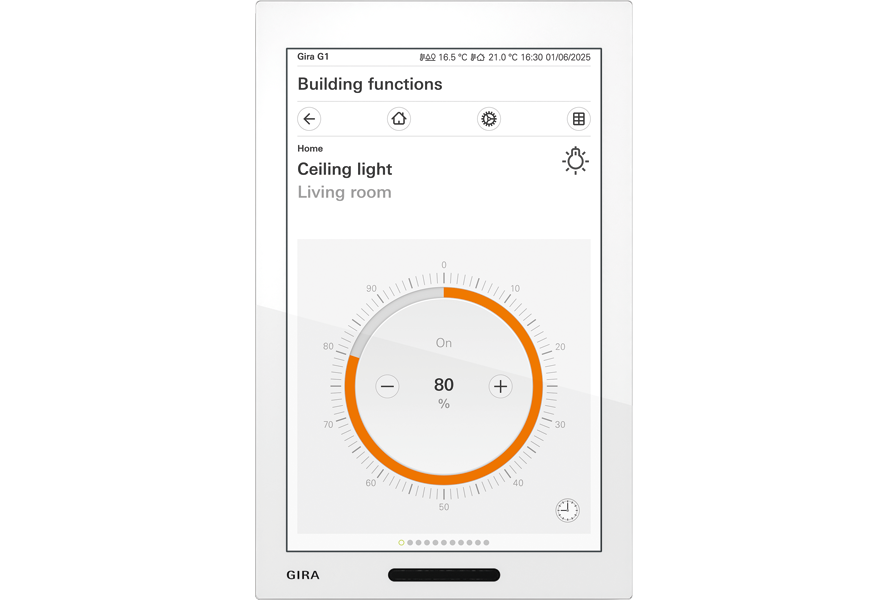

Lighting control

  • Easy control of light sources and light scenes
  • Optimal light for every situation
  • Desired brightness and colour temperature
  • Timer-based control

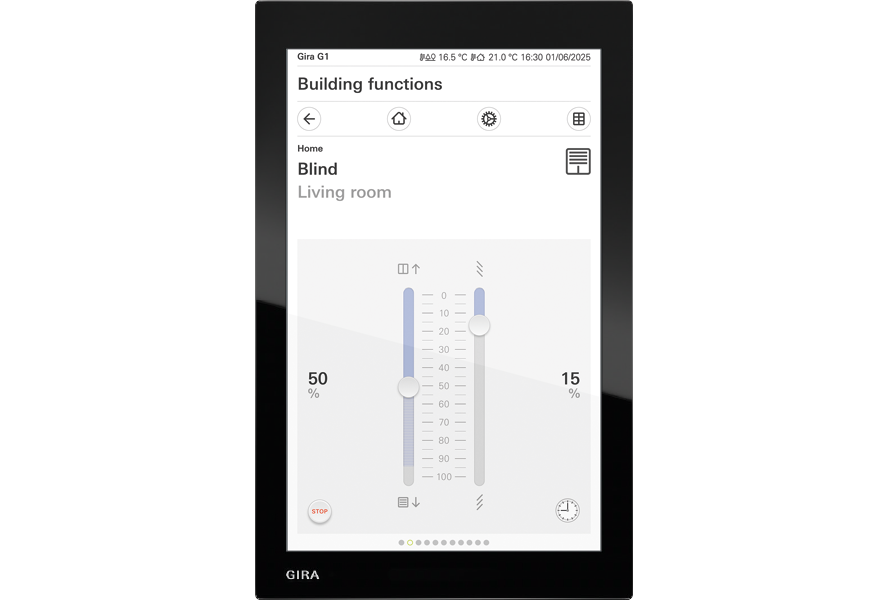

Shading

  • Automatic, energy-efficient shading based on the time of day and position of the sun
  • Privacy and sun protection
  • Integrated brightness sensor for optimum adjustment
  • Time and scene control for increased comfort
  • Group control

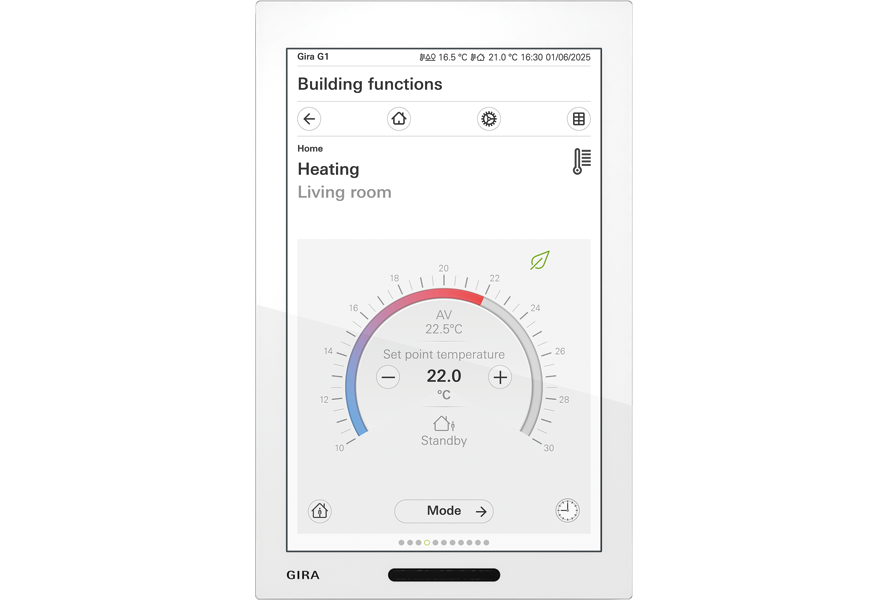

Heating and air conditioning

  • Central control of radiators, floor heating or air-conditioning systems
  • Individual temperature control for each room
  • Efficient heating and air-conditioning control for sustainable energy consumption
  • Integrated temperature sensors for a room climate that meets your needs
  • Timer-based control

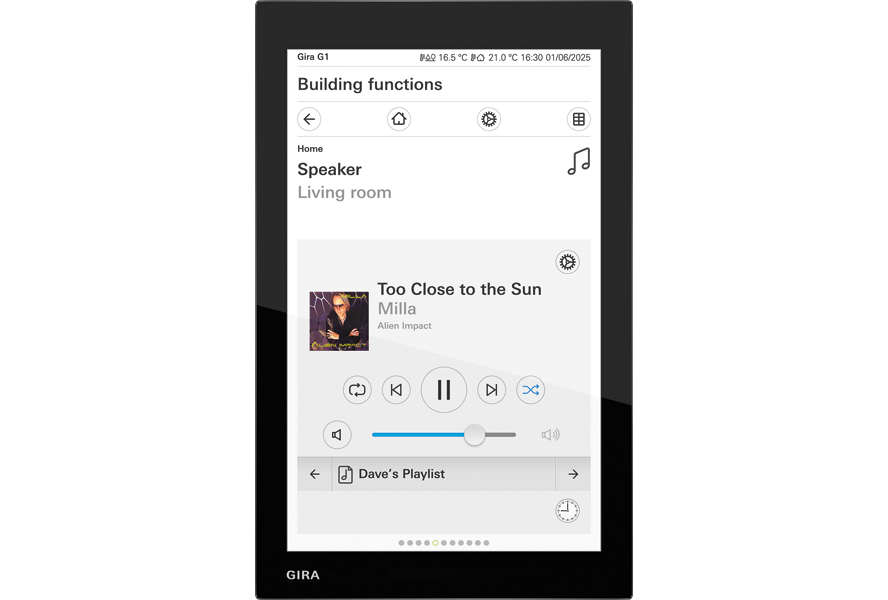

Music with Sonos

  • Audio systems are controlled directly from the display
  • Playlist management and volume control
  • Direct integration of Sonos and sonoro into the system
  • Wake up to music
  • Can be connected to third-party systems

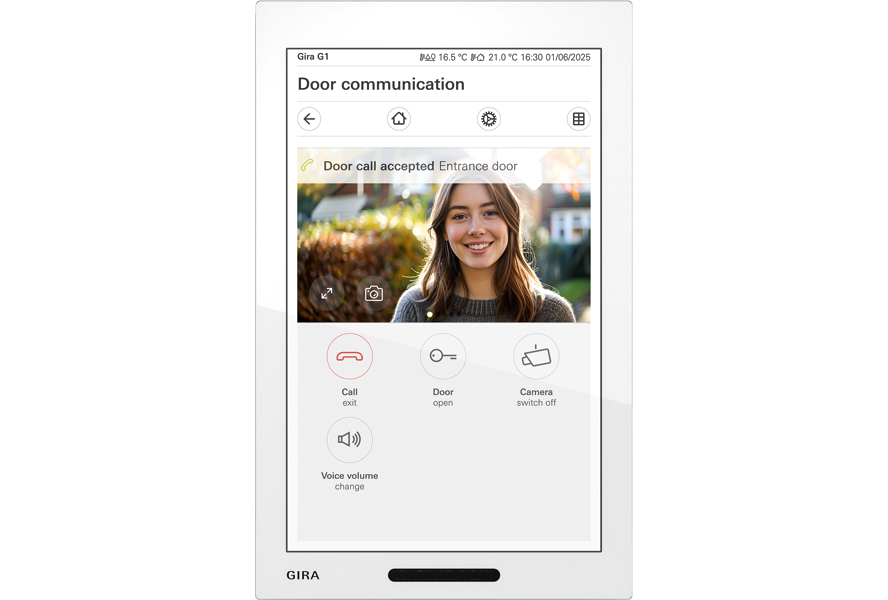

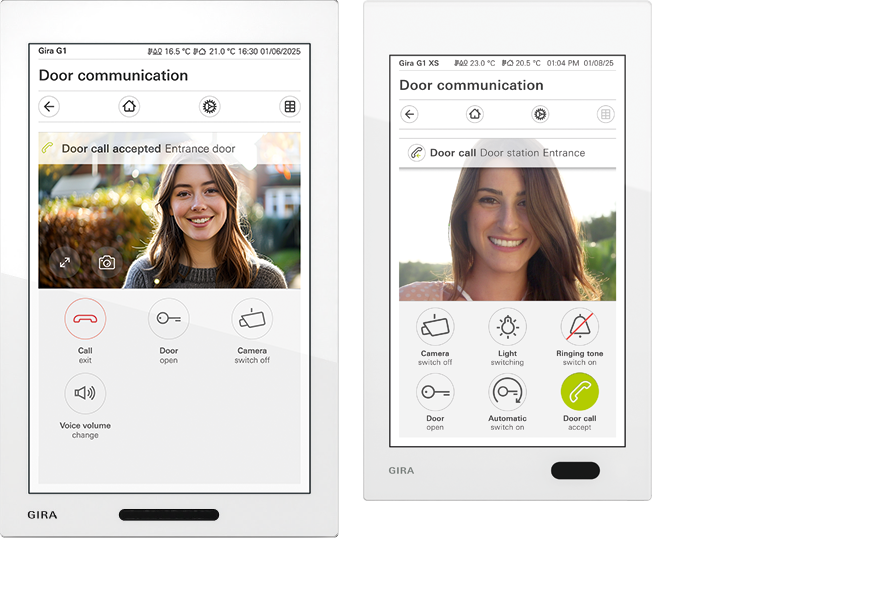

Door communication

  • Can be used as a home station in the Gira door communication system and as an SIP client in existing systems
  • All this at your fingertips: Camera access and door opening
  • High-resolution display with wide field of view for camera images
  • Easy integration and retrofitting
  • Local image storage for greater security
  • Quick start-up via DCS IP gateway and GPA
  • Can be easily integrated into existing networks as an SIP client

FAQs – A summary of all key information:

How do the products differ?

The Gira G1 is the premium solution with a 7-inch display, advanced sensor technology, HomeServer compatibility and more visualisation options. The Gira G1 XS is more compact, offers a 6-inch display and focuses on essential Smart Home functions, making it ideal for cost-optimised projects. Both devices support Gira One, Gira X1, KNX Secure and door communication via DCS or SIP.

What must be considered when replacing the devices?

When replacing an existing device with the Gira G1 or Gira G1 XS, make sure that the appropriate power supply (PoE or 24 V) is used and ensure the correct installation depth of the flush-mounted box and compatibility with the system used (e.g. Gira One, Gira X1 or KNX). Start-up takes place via GPA. Start-up via ETS is also possible for the G1 XS. Existing settings should be saved in advance

Which device is best suited to which areas of application?

The Gira G1 is ideal for projects with high demands on visualisation, customisation and multi-functionality. The Gira G1 XS is recommended for new buildings or renovations focusing on streamlined, cost-effective Smart Home control without compromising on design, security or ease of use.

What is the start-up process for Gira G1 devices?

Starting up the Gira G1 and Gira G1 XS is easy using the Gira Project Assistant (GPA). With the Gira G1 XS, ETS start-up is also possible – ideal for individual adjustments in the KNX environment. The GPA guides the user through the configuration step-by-step with integrated learning aids and is suitable for both new buildings and retrofits. Project data is transferred to the devices quickly and easily at the push of a button, either directly on site or remotely via GPA Remote Access.
